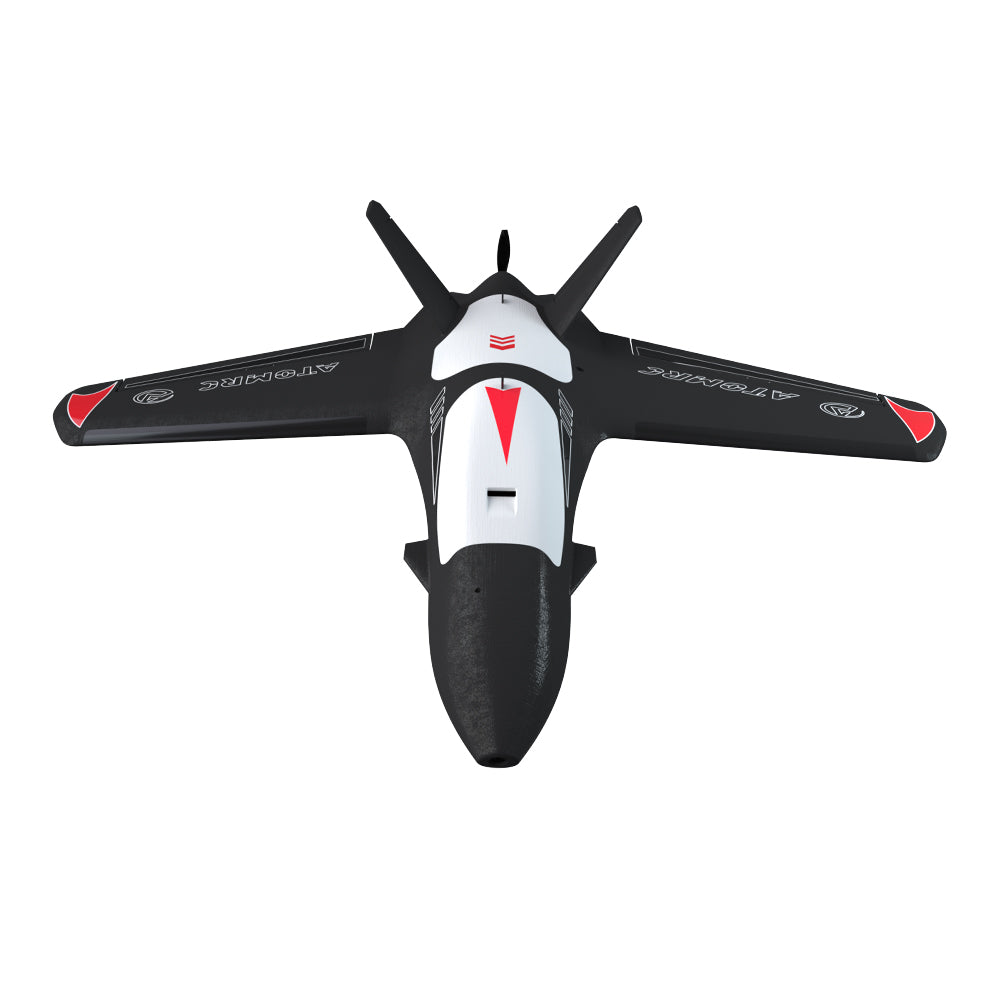

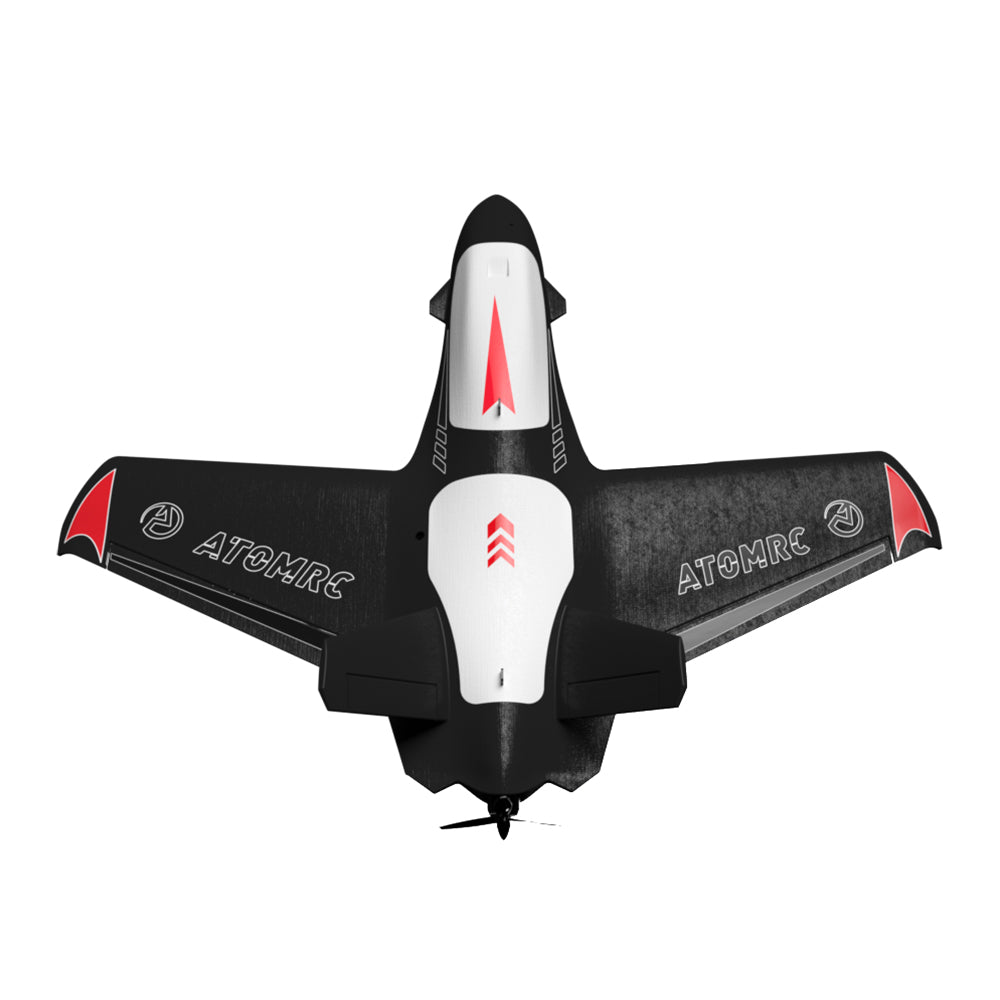

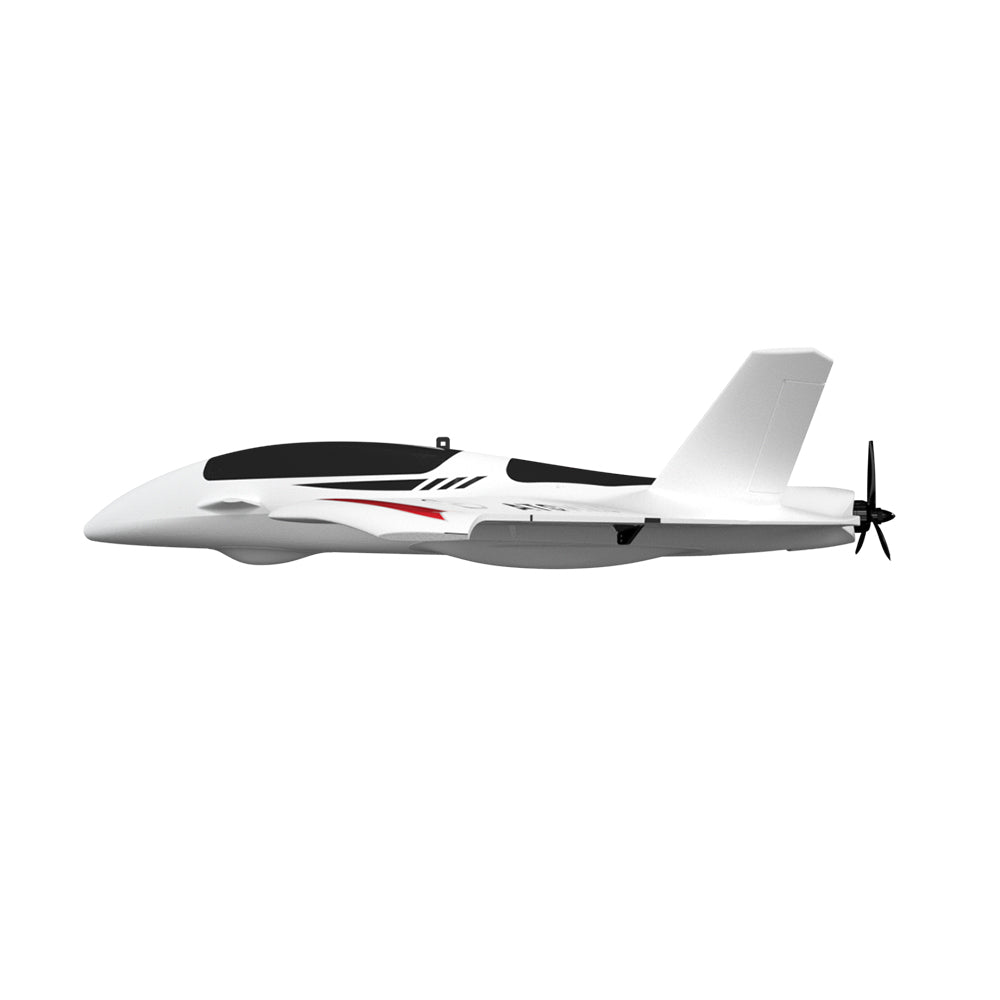

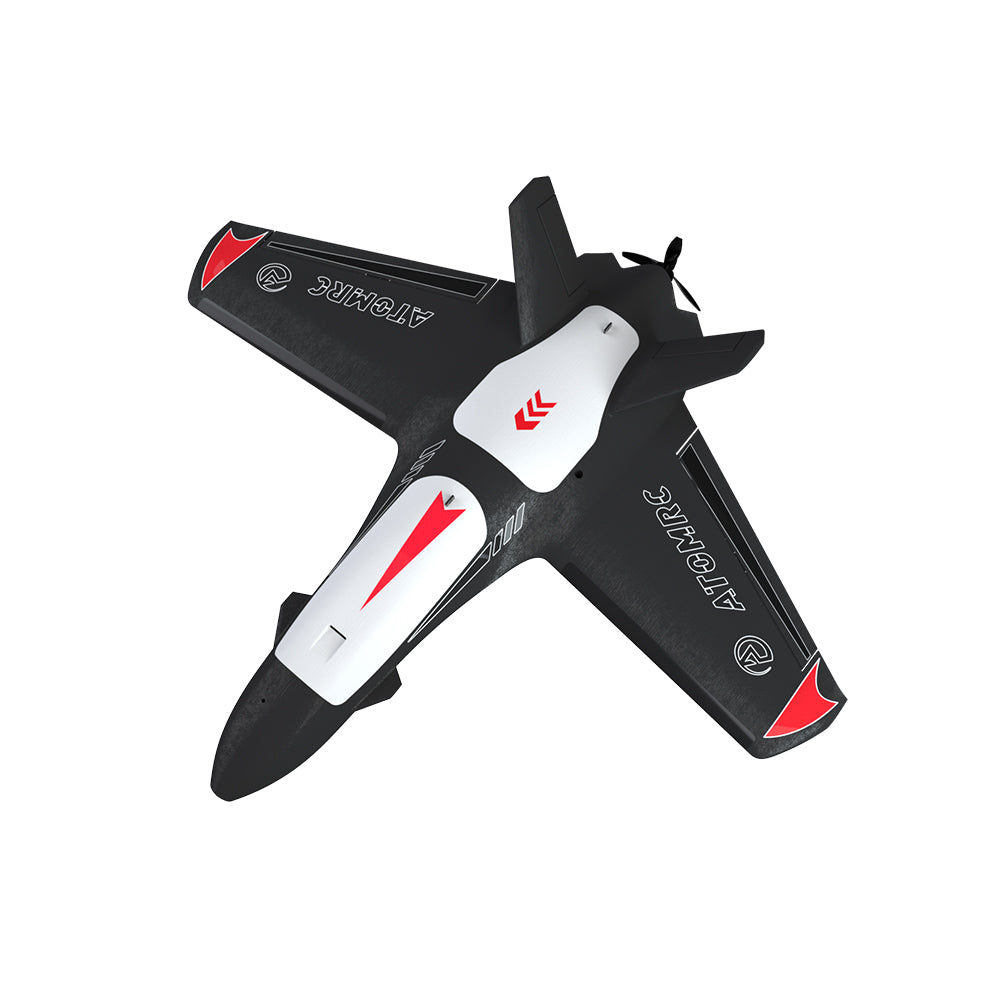

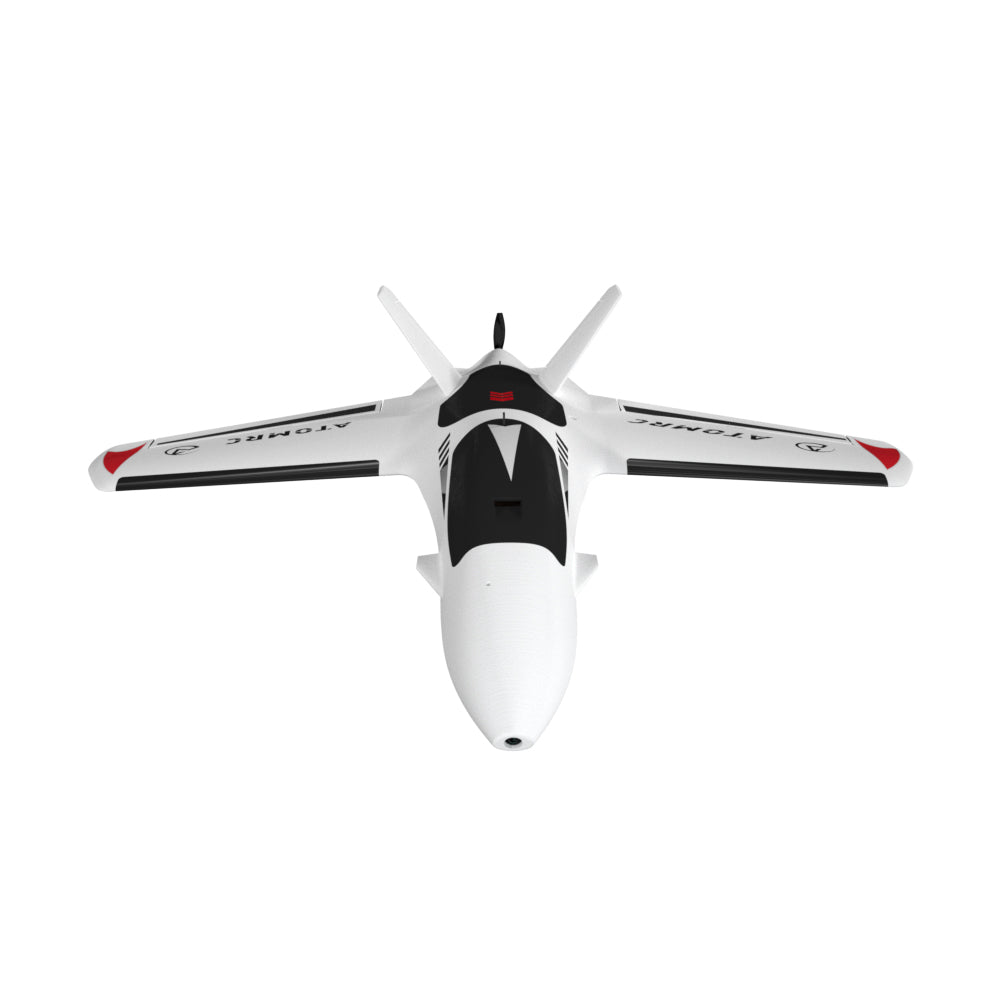

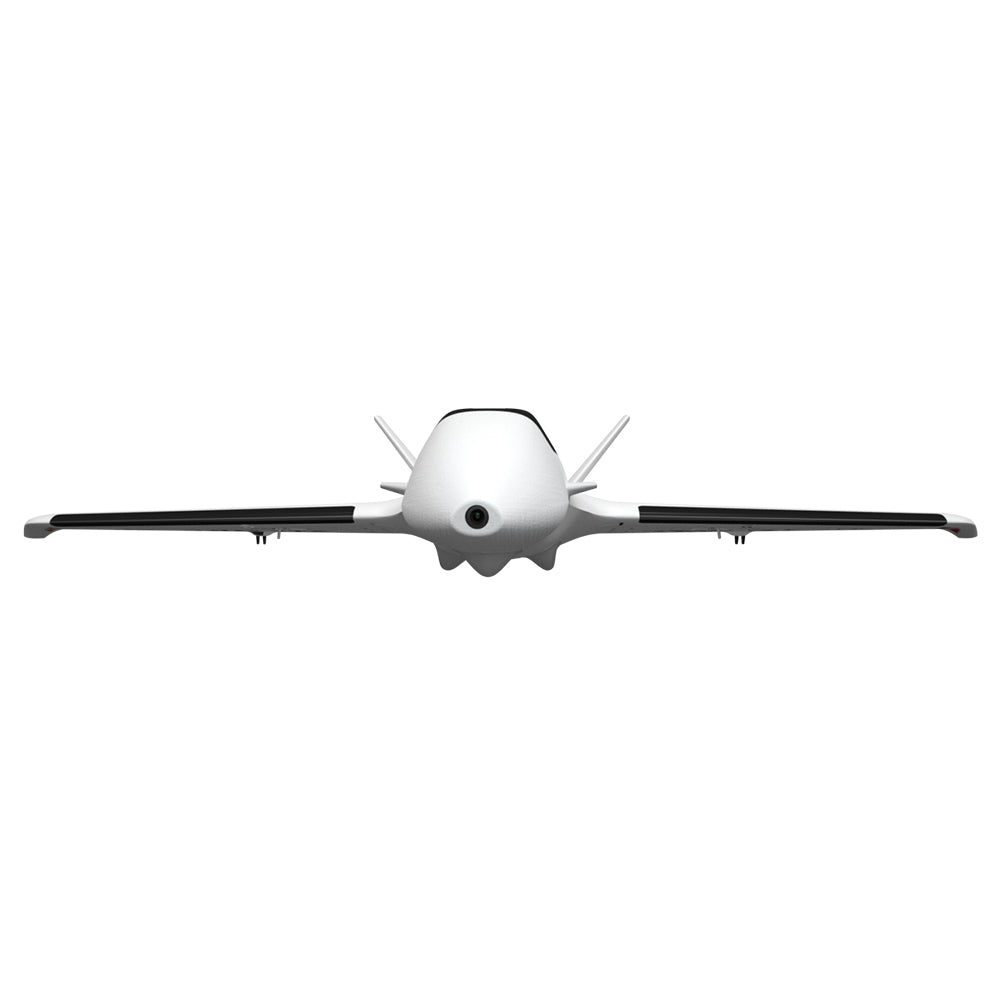

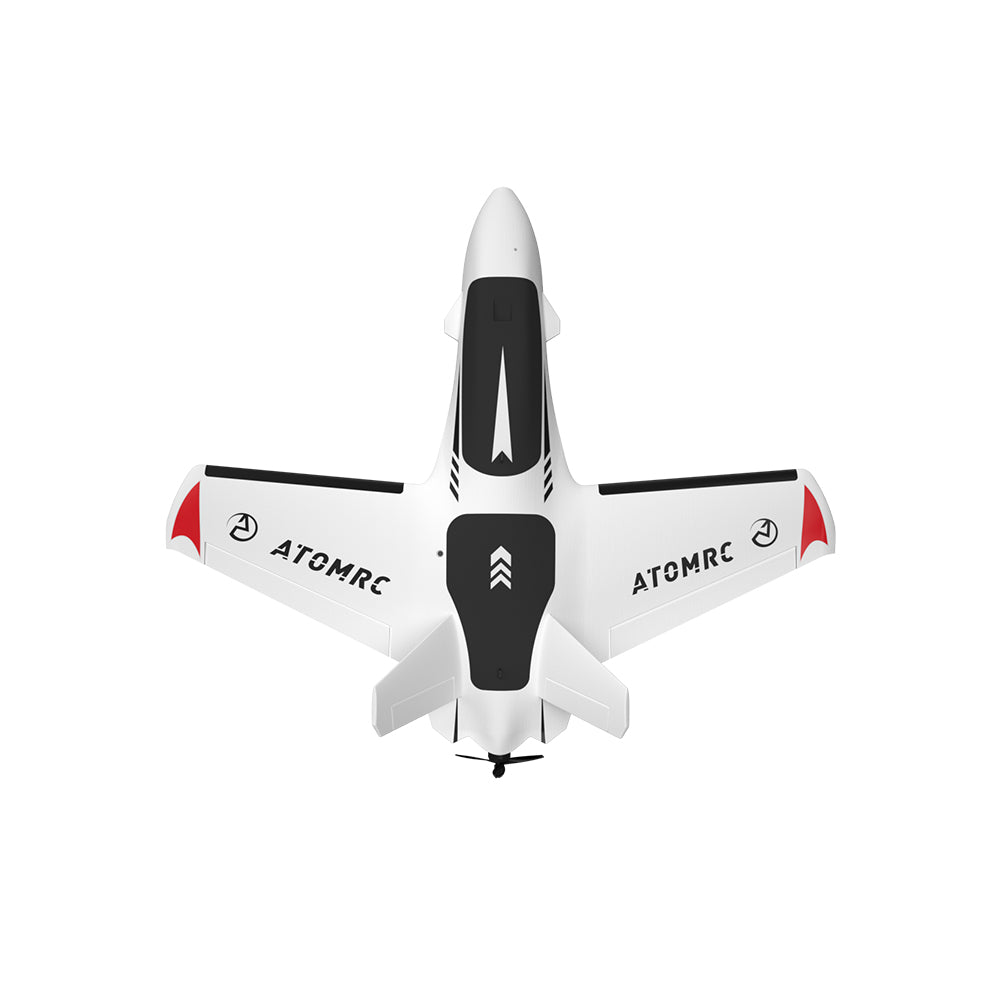

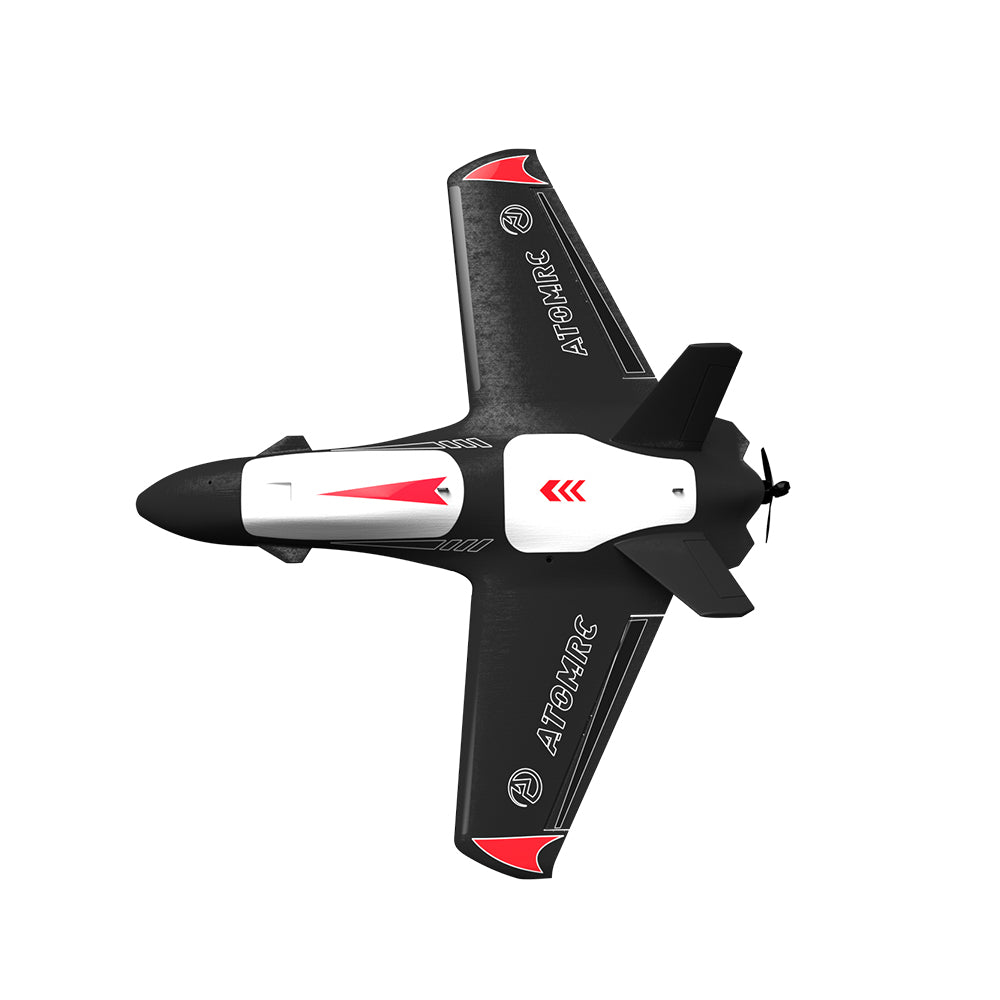

Atomrc Dolphin Fixed-wing Aircraft
ATOMRC Dolphin FPV RC Plane Fixed Wing Flying Aircraft is sweep forward fly wing, with elegant design, the dolphin can fly stable both on high speed and low speed, the large fuselage can give use lots of space to install the electronics, the detachable wing made the wing easy for transport, V tail made the wing more stable for crusing.
Description:
Brand Name: ATOMRC
Item Name: Dolphin
Wingspan: 845mm(33.2")
Length: 710mm(28")
WingArea: 15.24d㎡
Material: EPP
Motor recommend: 2306 1800KV
ESC: 30A with 5V/3A BEC
Servo: 2pcs 9g servo
Propeller recommend: 6~7 inch
Battery recommend : 21700 4S1P (300g)
Item weight: 1.1kg
Package Size: 67.5*17.4*28.5 cm
Features:
- EPP molded wing, embedded with carbon fiber tube, durable and light weight.
- Carbon fiber tube enhanced elevens, more rigid elevens during high speed fight.
- Detachable wing, portable to transport.
- Detachable head, two head for choice, use can choose fly with gopro or without gopro.
-Rubber band and magnet to lock the gopro, easy to install the gopro.
- V tail design make the wing more stable than normal fly wing.
- Pre installed wing and fuselage protector, more durable during landing.
- Compatible with GOPRO hero 5~7.
- Movable battery slot for better “CG” adjustment.
- Pre installed camera cable and antenna for FPV gear.
- Air inlet and outlet for FPV gear cooling.
Recommend Parts (not included in kit version):
Motor: 2306 1800KV
ESC: 30A with 5V/3A BEC
Servo: 2pcs 9g servo
Propeller: 5-6inch
Battery: 4S 1300-2200mah (Not Included)
Radio: more than 6CH (Not Included)
Package Includes:
Dolphin Kit V1.1 Version:
1 x Prebuild Dolphin Kit
1 x Ball Push/Push Rod
1 X Sticker
1 x Battery Strap
1 x Camera Cable
1 x SMA to UFL VTX cable
1 x Screws
Requires: Radio, Receiver, Battery, Charger, ESC, Motor, Servos set up.
Dolphin PNP V1.1 Version:
1 x Dolphin KIT
1 x 2306 1800KV
1 x ATOMRC Exceed BLS 4s30A ESC
1 x ATOMRC Exceed 9g Servo*2
Requires: Radio, Receiver, Battery, Charger set up.
Dolphin RTH V1.1 Version:
1 x Dolphin PNP
1 x ATOMRC F405 NAVI FC
Requires: Radio, Receiver, Battery, Charger set up.
Dolphin RTH FPV V1.1 Version:
1 x Dolphin RTH
1 x ATOMRC F405 NAVI FC
1 x ATOMRC TX15 VTX
1 x ATOMRC Toothless CAM
Requires: Radio, Receiver, Battery, Charger set up.
Payment Methods
We accept PayPal, Credit Card. If you are unable to pay for the above, please contact us.
Order Status
Once your order ships, you will receive a shipping notification email. This email will contain your tracking number and a link to check the status of your order. You can also check the status of your order by going to your account page.
Warehouse located
We have CN, USA and EU warehouse.
Shipping Charges
There are different shipping methods for your chioce, depending on yourself. Detailed shipping costs and chioces can be checked at the checkout page.
Free shipping on orders over $39. If your order value is under $39, you might be charged $10 for standard shipping(arrives in 7-15 days), or other shipping methods.
For Fix Wing RC FPV fixed wings product, we provide different shipping fee for Expedited shipping(arrives in 10-20 days). The specific shipping cost is subject to the checkout page.
For all orders' package, we handle packages by DHL, UPS, EMS, our special shipping line, DDP and so on, usually takes about 7-20 days for delivery.
Shipping Time
Most orders will be shipped within usually 1~2 working days , but for special holidays, 4 business days might be needed.
The total processing time may be affected by the stock status of individual items, national holidays, etc.
For all orders' package, we handle packages by DHL, UPS, EMS, our special shipping line and so on, usually takes about 7-20 days for delivery.
*Please note that we only process orders on business days (Monday-Friday).
*Total Delivery Time=Processing Time+ Shipping Time
Once we receive your online order we will send you a confirmation e-mail and you will receive a tracking number once the order has been shipped and is on it’s way to you.
If you have any questions about any orders in transit, please feel free to contact us. We care about you so much and we're doing our best to catch up!
Please Note:
Orders placed on Friday Afternoons, during weekends or National Holidays will be processed the next business day.
During holiday periods, such as Thanksgiving, Black Friday and Cyber Monday, Christmas, and Easter, orders may be subject to delay.
Please allow a few additional business days for your order to be processed and dispatched.
There are estimated delivery time only, so can not guarantee an exact delivery time.
Thanks for understanding and have excellent shopping with ATOMRC!
Customer Reviews
nice kit have not flown yet but should alert the fact that the carbon spar is exposed in the fuzz, I unfortunately while fitting gear in th fusalarge pulled the battery lead to connect and the flight controller shorted out and is now damaged, my fault,but I have now put loose heat shrink tube on the exposed spar so be warned
This plane flies absolutely amazing once you've mastered its flight characteristics. I've ordered a few from this website and always arrived on time and I'm damaged. The foam is absolutely amazing for accidents you'll find if you ever have one she goes back together easily, (no more chasing small pieces of foam) combined with some carbon fiber wrap she's quite strong and can handle some abuse. Currently running 35 amp esc and T-Motor f-90 and I cannot believe how well this thing flies. Ditch the motor they give you, you want to go fast throw the 2207 on there and you'll hit 1/0 easy without full throttle on a dive. Amazing fpv platform. Picture is from Dolphin v1 before wrapping in "carbon fiber".
Well made easy to build and fast shipping, I only would like to have rudder on it. I’m a real pilot and I don’t see any reason to miss the yaw control.
Anyway it’s a great model.
After I build it I had 3 maiden flight failures with minor damage. I was so frustrated that I decided to give up with this plane. I have experience with planes from 2000. Then I saw a video that they fly it with autolaunch and I try it and lew perfect. I don't know why I couldn't fly it manually but since the autolaunch mode works flawlessly I don't bother.
Motor direction wrong, servo directions wrong. Instructions useless and contain so little information e.g suggesting plugging both servos to the same port... far from ready to fly.
